XTEN-AV continues to empower engineers, consultants, and designers with innovative tools for safety system planning and integration. In modern building safety, fire alarm systems play a crucial role in protecting lives and assets. However, not all fire alarm systems are built the same. When it comes to Fire Alarm System Design, one of the most common questions professionals face is whether to choose an addressable or conventional system. Both systems serve the same primary purpose of detecting fire and alerting occupants, but they differ in configuration, functionality, cost, and maintenance. Understanding these differences helps in selecting the right system for your project’s size, budget, and requirements.

Introduction to Fire Alarm Systems

A fire alarm system is a network of interconnected devices designed to detect the presence of fire, smoke, or heat and notify building occupants and emergency responders. It typically includes detectors, control panels, manual call points, alarms, and notification devices. The goal is to ensure early warning and quick evacuation.

In Fire Alarm System Design, the choice between addressable and conventional systems defines how these devices communicate with the control panel and how accurately they identify the fire’s location.

What Is a Conventional Fire Alarm System?

A conventional fire alarm system is the traditional approach to fire detection and alerting. In this design, the building is divided into zones, each containing several detectors and manual call points connected to the control panel through individual wiring circuits.

When a detector or call point in a zone is triggered, the control panel identifies the specific zone but not the exact device. For instance, if a detector activates in Zone 3, the panel will display “Fire in Zone 3,” prompting responders to check the entire zone to locate the source.

Key Features of Conventional Fire Alarm Systems

1. Zoned Configuration: The building is divided into zones, and each zone’s wiring connects to the control panel.

2. Basic Indication: The system identifies the zone of activation but not the exact device.

3. Simple Wiring: Each circuit connects multiple devices to the panel, making installation straightforward for smaller buildings.

4. Lower Cost: Conventional systems are typically less expensive upfront, making them suitable for small-scale applications.

Advantages of Conventional Systems

• Cost-Effective: Ideal for smaller projects like retail stores, schools, or small offices.

• Ease of Installation: Simple wiring and minimal configuration make installation quick.

• Reliable Performance: Proven technology with years of practical use and reliability.

Limitations of Conventional Systems

• Limited Detection Precision: Cannot pinpoint the exact device in alarm, only the affected zone.

• Higher Maintenance Over Time: Troubleshooting requires manually checking devices in the affected zone.

• More Wiring Required: As the number of zones increases, wiring complexity and costs also rise.

What Is an Addressable Fire Alarm System?

An addressable fire alarm system represents a modern and intelligent approach to detection and monitoring. In this design, every device on the system, such as smoke detectors, heat detectors, and manual call points, has a unique address or digital identity.

These devices communicate with the control panel via a looped wiring circuit that continuously transmits data. When a device is triggered, the panel identifies the exact device and its location, such as “Smoke Detector 05, Conference Room.” This precise information enables quicker response times and efficient maintenance.

Key Features of Addressable Fire Alarm Systems

1. Digital Communication: Devices communicate data continuously with the control panel.

2. Individual Addressing: Each device has a unique identifier for precise location reporting.

3. Loop Wiring: Devices are connected in loops rather than separate circuits, reducing wiring requirements.

4. Advanced Monitoring: The panel monitors each device’s status for faults, contamination, or disconnection.

Advantages of Addressable Systems

• Precise Detection: Identifies the exact device and its location, improving response time.

• Reduced Wiring: Uses loop wiring instead of individual circuits, minimizing material costs.

• Simplified Maintenance: Faults can be easily located and fixed through system diagnostics.

• Flexibility and Scalability: Ideal for large or complex buildings that may expand or require upgrades.

• Integration Capabilities: Easily integrates with other building management systems and automation controls.

Limitations of Addressable Systems

• Higher Initial Cost: Advanced technology and control panels come at a higher price.

• Complex Installation: Requires skilled technicians and programming knowledge.

• Specialized Maintenance: Regular software updates and configuration checks are essential.

Key Differences Between Addressable and Conventional Systems

This comparison highlights that while conventional systems are simple and affordable, addressable systems offer superior accuracy and scalability for modern buildings.

When to Choose Each System

The choice between addressable and conventional systems depends on factors such as building size, complexity, and future expansion plans.

Choose Conventional Systems When

• The building is small, such as a single-story office, school, or shop.

• The budget is limited, and basic detection is sufficient.

• You need a straightforward installation with minimal maintenance.

Choose Addressable Systems When

• The project involves large or multi-story buildings.

• You need precise detection and real-time system monitoring.

• Integration with building management systems or automation is required.

• Scalability and long-term reliability are important for the building’s lifecycle.

The Role of Technology in Modern Fire Alarm System Design

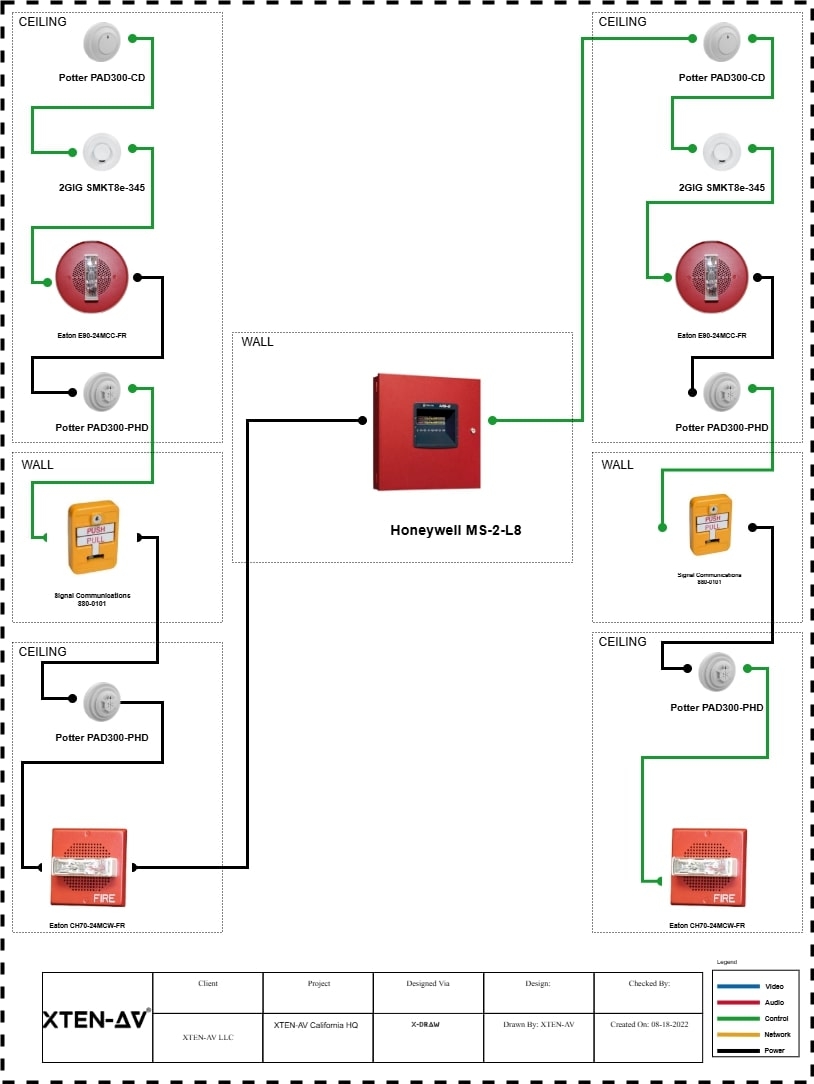

With advancements in technology, modern fire alarm systems are becoming more intelligent and connected. Platforms like XTEN-AV allow designers and engineers to plan and visualize Fire Alarm System Design layouts efficiently. These tools automate calculations, optimize detector spacing, and ensure compliance with NFPA and local fire codes.

Automation also enables system designers to simulate fire scenarios, test alarm sequences, and integrate with security or HVAC systems seamlessly. In complex infrastructures such as hospitals, airports, or smart buildings, addressable systems are becoming the preferred choice due to their precision and interoperability.

Conclusion

Both addressable and conventional fire alarm systems have their place in modern safety design. The key is to match the system to the building’s size, risk level, and operational needs. Conventional systems offer simplicity and cost-effectiveness for small buildings, while addressable systems deliver advanced monitoring, scalability, and efficiency for larger or more complex environments.

In Fire Alarm System Design, accuracy, reliability, and response time are vital. With platforms like XTEN-AV simplifying the design process, professionals can ensure that their systems meet safety standards, enhance building management, and protect occupants effectively. Whether you choose addressable or conventional, the right design approach will always be the foundation of dependable fire safety.
